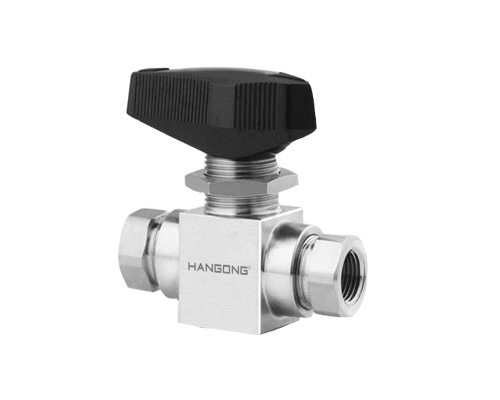

HANGONG HE series High Pressure Ball valves is used in aerospace, military, nuclear power, chemical analysis and other industries of the instrument and pipeline cutting and switching work, with a wide range of temperature and corrosion resistance, to ensure the 10000psi (689bar) withstand pressure and durability. HE series split ball valve, including two and three way configuration, control pipeline internal cutting and switching function.
HE series high pressure ball valve, valve material containing stainless steel, -276, Jin tantalum alloy, titanium alloy, to prepare for customer choice, the high resistance is suitable for every connection.
Product features
Ø  Provide multiple connections
Ø  Tantalum tantalum niobium alloy core is used for sleeve connection
Ø  Bidirectional flow of medium
Ø  100% through factory test
Ø  The operation method is manual, pneumatic or electric
Ø  Wide operating temperature range
Ø  Working pressure 10000psi above
Test standard
Helium test, the maximum allowable leakage rate is 0.1std cm3/min.
Design standard
API 6D，ANSIB16.34，API 607，BS 6755-1，ISO 5211。
Connection standard
NPT（ANSI B1.20.1），BSPP（DIN 259，ISO 228/1）
Butt weld ANSI 16.25，Socket weld ANSI 16.11
Certification standard
PED 97/23 EC，ATEX 94/9EC，SIL3，ISO 9001，API 6D
Traffic data

Specification size
